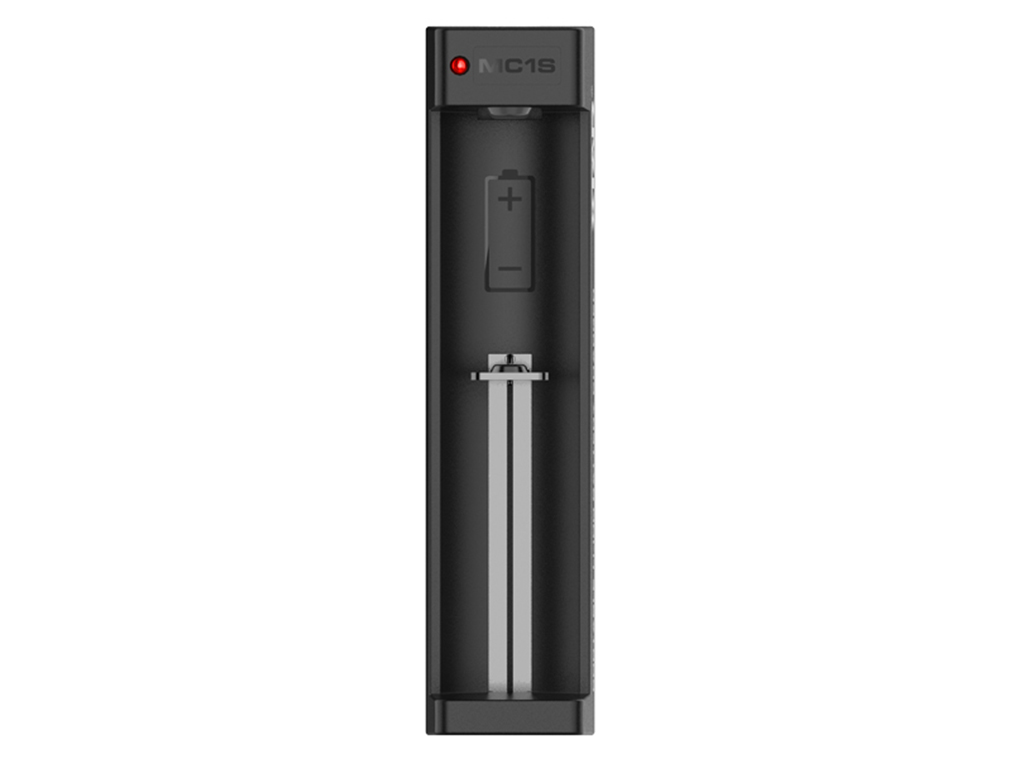

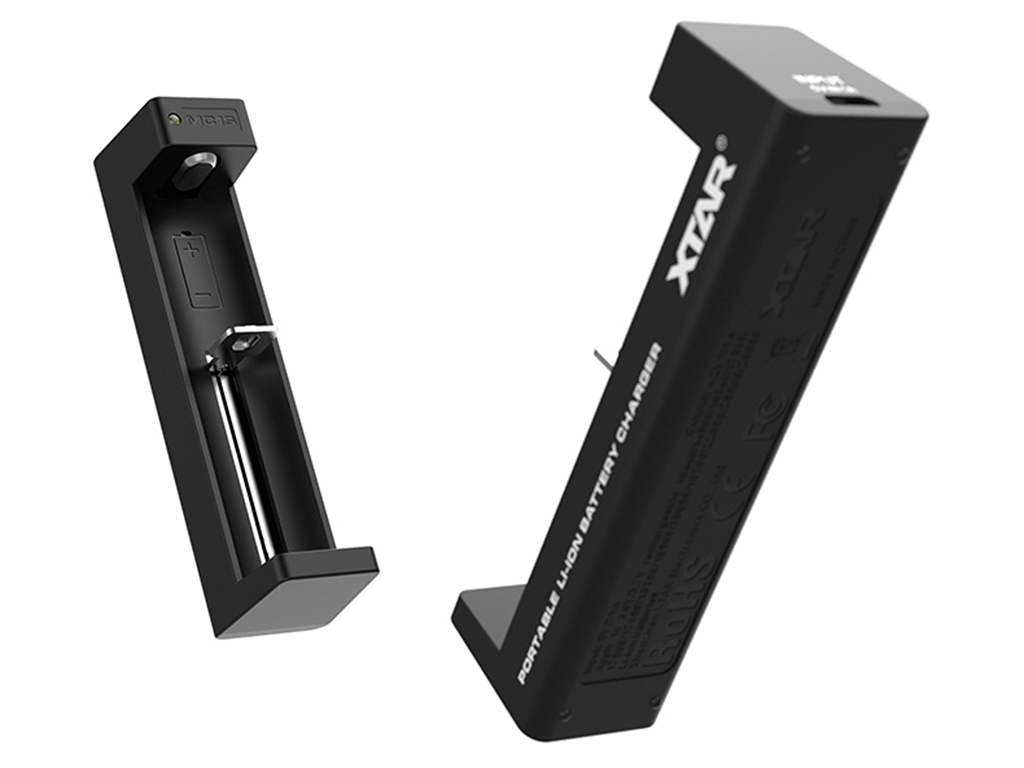

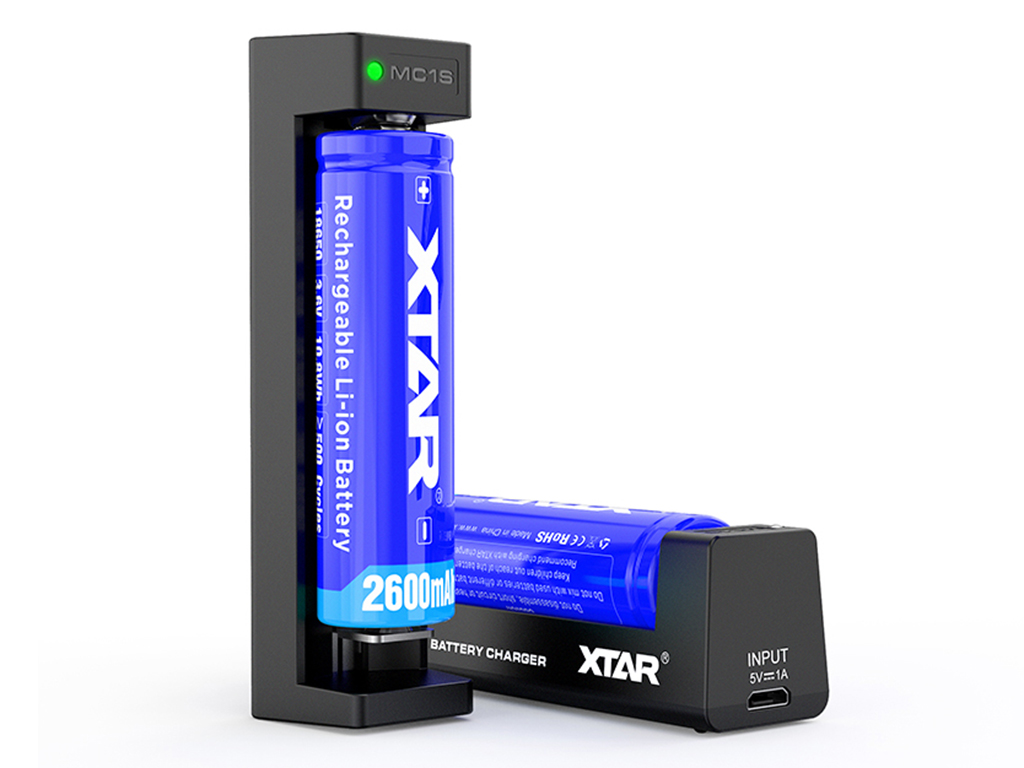

Xtar MC1S - Charger for Li-Ion batteries 3.6V/3.7V incl. USB cable

Item number: 500224

Manufacturer: Xtar
* Incl. VAT excl. Shipping
*valid for deliveries within Germany, delivery times for other countries can be found via the button with the shipping information
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/i9a0e0hd8l6w/plugin/76/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "JRWL49ADLKVDN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "1e66d57591bff4e17db9b2da4ab35516"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentymarkets.com/i9a0e0hd8l6w/plugin/76/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "JRWL49ADLKVDN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "1e66d57591bff4e17db9b2da4ab35516"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('68c9a6848fbc1', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('68c9a6848fbc1', 'paylater', 'paypal', 'rect', 'gold'); } if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('68c9a6848fbc1', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('68c9a6848fbc1', 'paypal', 'buynow', 'rect', 'gold'); }

A small, inexpensive and fast charger. Ideally suited as a second charger or travel charger.

Xtar MC1S charger for Li-Ion batteries Charging current max. 1A

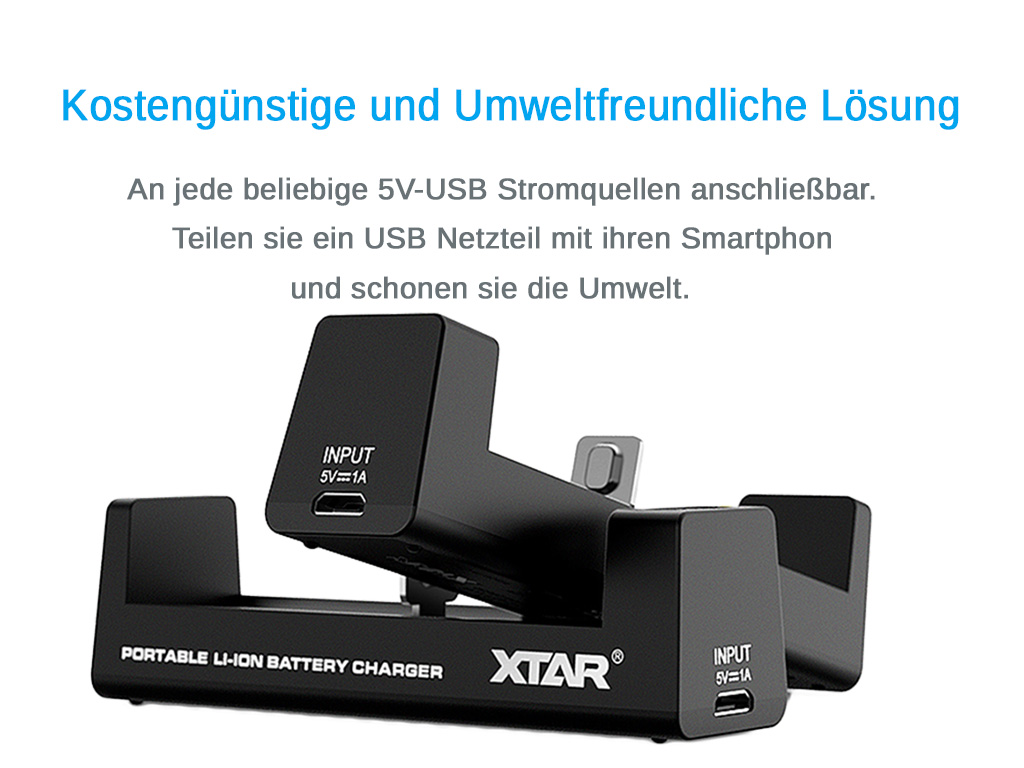

In addition to features already known from XTAR, MC1S offers low weight and size, a low price, simple operation and flexibility. Any 5V USB power supply can be used to operate the charger. MC1S charger has one charging slot.

The following Li-Ion battery types can be charged:

16340 / 18350 / 10440 / 14500 / 14650 / 16650 / 17500 / 17670 / 18490 / 18500 / 18650 / 18700 / 22650 / 26500 / 26650 / 20700 / 21700 / 26650
Attention: Not for batteries with total length over 71,0 mm.
              Cannot charge 26650 with raised positive terminal.
              Not for 20700/21700 with protection electronics.
3.6V and 3.7V Li-ion batteries. Compatible with different battery sizes.

Product information:

  • Reverse polarity protection and short circuit protection circuit.
  • Shock resistance technology prevents batteries from falling out.
  • Micro-USB charging port
  • Three-stage charging (TC, CC, CV)
  • IC temperature monitoring
  • Voltage-dependent switch-on and switch-off of the charging process
  • Input: DC 5V 1000mA
  • Output: DC 4.2V 1000mA
  • Charging current: 1000 mA
  • Charging voltage: 4.2 ± 0.05 V


Highlights:



Safety instructions:

1. charge only 3.7V or 3.6V Li-ion batteries!
2. device is for home use, keep it away from water and moisture!
3. disassembly and modification are strictly prohibited!
4. please avoid short circuit.

Scope of delivery:Xtar charger, USB cable, instruction manual in several languages.
Power supply unit optionally available (400604, 400608, 400616)

Input 5.0V DC/1A
Cut-off voltage 4.2V ± 0.05V
Operating temperature 0 °C - 40 °C
Storage temperature 0 °C - 60 °C
Length 92 mm
Width 22 mm
Depth 26 mm
Weight 22 g without cable
Manufacturer Link Xtar

Notes:

The above parameters are laboratory tested approximations may vary between charger, batteries and environment.
