Xtar VP4 Plus "Dragon" - Charger for Li-Ion, Ni-MH and 3s battery packs
Item number: 500203
Hersteller: Xtar
The XTAR DRAGON VP4 Plus is a multi-chemistry battery charger with analysis functions for the demanding and safety-conscious battery user. It charges Li-Ion industrial cells and Ni-MH household batteries and as a special feature also 3s Li-Ion/LiPo battery packs as well as portable devices such as smartphones via the USB output. With its extensive analysis functions and the included measuring probes, the condition of a battery, its capacity and also the internal resistance can be determined very precisely.
Xtar VP4 Plus "Dragon" - Charger for Li-Ion, Ni-MH and 3s battery packs
A refresh programme for Ni-MH batteries rounds off the range of functions of this professional charger. The XTAR VP4 Plus "Dragon" is more than just a battery charger, it is your personal battery doctor.
The following Li-Ion battery types can be charged:
10440 / 14500 / 14650 / 16340 / 17500 / 17670 / 18350 / 18490 / 18500 / 18650 / 18700 / 22650 / 25500 / 26650 / 20700 / 21700 / 32650
3.6V/3.7V Lithium Ion Batteries IMR, INR, ICR
The following NiMH / NiCD battery types can be charged:
AAAA / AAA / A / SC / C / D.
and Li-Ion / LiPo battery packs 3S 11,1V
Product information:
- High quality LCD display showing battery type, charge level, selected charge current, capacity & internal resistance.
- Easy operation, error messages and notes as voice output (can be switched off)
- Four large charging slots: the Xtar VP4 Plus Dragon also charges 4* 32650 / D batteries simultaneously

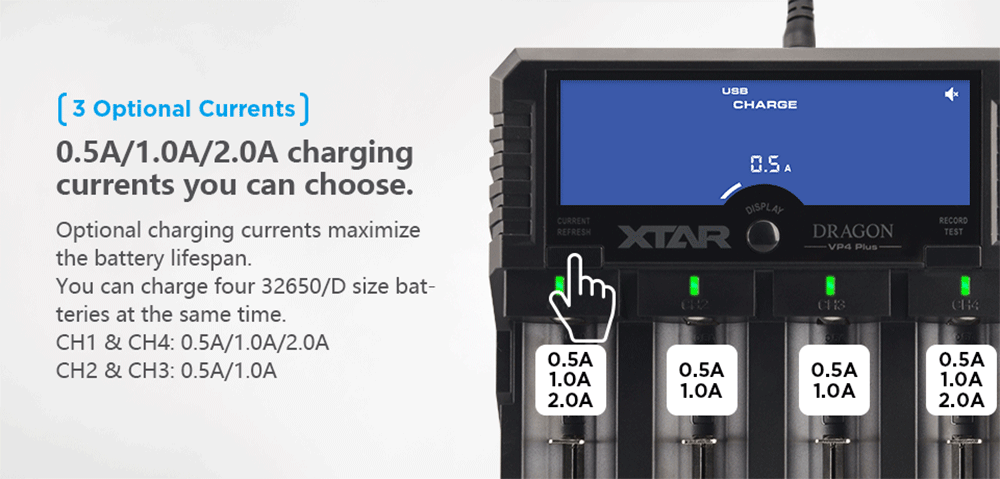

- Three selectable charging currents: 0.5A, 1A and 2A (2A only in slot 1 & 4)
- Unique charging function of 3S 11.1V Li-Ion/LiPO battery packs incl. Balancer connector
- Correct capacity measurement during discharging of the battery (charging > discharging & measuring > charging), up to 64 results can be stored and compared internally
- Accurate determination of battery voltage and internal resistance via supplied measuring probes
- Refresh programme to combat the memory effect in Ni-MH and NiCD batteries
- Reactivation of deep-discharged batteries through 3-stage repair programme
- Charging of portable devices via the USB output of the XTAR VP4 Plus and also battery pack function (can be used in all slots)
- Safe thanks to temperature monitoring, reverse polarity protection and flame-retardant housing
- 2 years manufacturer warranty
- RoHS, CE and FCC certified
Test & Manufacturer link:
- XTAR VP4 Plus "Dragon" on the manufacturer's page
- LygteInfo.co.uk (detailed test results in English).
Highlights:
Scope of delivery: Charger, power supply with EU plug, car charging cable, a pair of probes, carrying bag and instructions.
Input | 12V/3A |
Charging current 0.5A | 0,5A *4 |
Charging current 1A | 1A *4 |
Charging current 2A | 2A *2 |
Termination | Li-Ion 4.2V ± 0.05V |
NiMH/NICd: 1.4 ± 0.1V | |
USB output | DC 5V max. 2.4A |
Charging current 3s battery pack | 1A |
Operating temperature | 0 °C - 40 °C |
Weight | 345 g |
Dimensions (LxWxH) | 158 x 147 x 40 mm |
