Efest LUC V4 Charger for 3.6V -3.7V Li-Ion Batteries Latest Version 2.0

Item number: 500405

Manufacturer: Efest
* Excl. VAT excl. Shipping
*valid for deliveries within Germany, delivery times for other countries can be found via the button with the shipping information
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/i9a0e0hd8l6w/plugin/76/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "JRWL49ADLKVDN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "521d6330da47121b3482570ee9c742c7"); document.body.appendChild(script); } else { var script = document.getElementById('paypal-smart-payment-script'); script.src = "https://cdn03.plentymarkets.com/i9a0e0hd8l6w/plugin/76/paypal/js/smartPaymentScript.min.js"; script.setAttribute("data-client-id", "AfslQana4f4CQjHvRBnUc6vBJg5jgJuZFwM-SbrTiGKUAqB7MrxQv3QWFdQ6U1h7ogMDokT1DNBzRxMw"); script.setAttribute("data-user-id-token", ""); script.setAttribute("data-merchant-id", "JRWL49ADLKVDN"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); script.setAttribute("sandbox", ""); script.setAttribute("googlePayComponent", 1); script.setAttribute("applePayComponent", 1); script.setAttribute("logToken", "521d6330da47121b3482570ee9c742c7"); }
if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('68b08d0e08281', 'paylater', 'paypal', 'rect', 'gold'); }); } else { renderPayPalButtons('68b08d0e08281', 'paylater', 'paypal', 'rect', 'gold'); } if (typeof paypal_plenty_sdk === 'undefined' || typeof renderPayPalButtons !== 'function') { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('68b08d0e08281', 'paypal', 'buynow', 'rect', 'gold'); }); } else { renderPayPalButtons('68b08d0e08281', 'paypal', 'buynow', 'rect', 'gold'); }

Efest LUC V4 Charger for Li-Ion Batteries Version 2.0

The Efest LUC charger has four intelligent, independently functioning charging bays. Via a soft switch the batteries can be charged with either 500mA, 1000mA or 2000mA. The Efest LUC can be operated either with the 230V mains adapter or 12-24V car charging cable. (Car adapter not included in delivery) Car charging adapter article no. 400606
CE, RoHs certified

The following Li-Ion battery types can be charged:

10440 / 16340 / 14500 / 14650 /  16650 / 18350 / 17500 / 17670 / 18500 / 18650 / 18700.

Only 2 at a time:

26500 / 26650 / 22650 / 27700
15270 or 14250 batteries can only be charged with spacers.
3.6V and 3.7V Li-ion batteries

product information:

  • simple uncomplicated operation
  • Charging is fully automatic after self-testing and analysis of the batteries
  • Selectable charging voltage of 0.5A, 1A, and 2A possible
  • HD mini LCD screen for precise real-time display (voltage and battery capacity)
  • USB port and inserted battery allows you to charge your mobile phone or laptop
  • Optical warning of deep discharge through USB output
  • Single slot monitoring for 1-4 Li-Ion batteries of different capacity
  • Activation function for deeply discharged batteries, LUC V4 can activate the over-discharge protected batteries
  • High safety through protection electronics overvoltage, short-circuit and reverse polarity protection
  • Automatic restart of the charging process if the voltage of a battery remaining in the charging cradle falls below 3.9V
  • Suitable for Li-Ion batteries

Test report and manufacturer's page:

Lygte-Info http://www.efestpower.com/LUC

Scope of delivery: LUC charger (black), 230V power supply.

  • Colour: black
  • Input voltage AC: 12V - 24V
  • Output voltage: 4.1V ± 1
  • Cut-off voltage: 4.20V ± 0.05V
  • Charging current 0.5A: 500mA ± 5
  • Charging current 1A: 1000mA ± 5
  • Charging current 2A: >2000mA ± 5 %
  • Automatic charging at: 3.9V ± 0.15mA
  • Operating temperature: 0 °C - 40 °C
  • Storage temperature: -40 °C to +70 °C
  • Net weight with power supply: 320 g
  • Gross weight with packaging: 550 g
  • Dimensions L x W x H in mm without power supply : 135 x 112 x 32

As soon as the external power supply or car charger is connected to the LUC charger, the system starts to test and analyse itself and the inserted batteries.

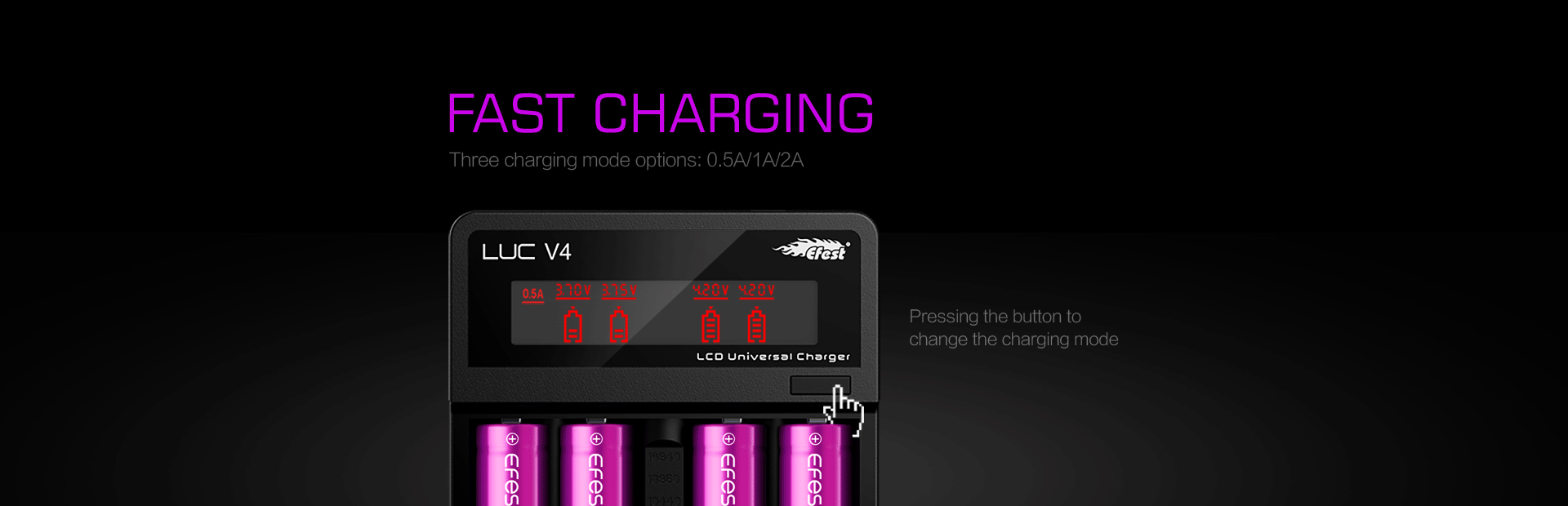

Via a soft switch the batteries can be charged with either 500mA, 1000mA or 2000mA depending on the size of the battery.
500mA with the following battery sizes 10440/14500/14650/16340/16650/17650/17670/17350/18490/18500/18650/22650
1000mA at: 17670, 18650, 18700, 26500, 26650, 22650
2000mA at 25500/26650
CV is 4.20V.
